Our new showroom in Tempe, Arizona measures 5,400 square feet and has an ever-changing inventory of demonstration-ready machines. Stop by anytime to see what we have on the floor, available for immediate delivery! For a live machine demonstration, please call the office before you visit and we will have an Ellison representative available to demonstrate the machine and answer your questions.
*For more information or to get a quote, call us at 480-968-5335 or fill out the form at the bottom of this page.
Haas SMINIMILL Super-Speed CNC VMC
OPTIONS:
Demo 2024
10,000-rpm Spindle, 40 taper
Through-Spindle Coolant Ready
Wireless Intuitive Probing System; Renishaw
Chip Auger
High-Speed Machining
45-gallon (170 liter) Coolant Tank with 1 hp (0.75 kW) pump
ADDITIONAL ADD ONS:
StarMetal Fluids Skimray
Swarf Unlimited Standard Sump Filter Screen
Haas UMC-500SS Super-Speed 5-Axis VMC
OPTIONS:
Demo 2025
12,000-rpm Spindle, 40 taper, 30 hp
Through-Spindle Coolant Ready
High-Speed Side-Mount Tool Changer, 40
taper, 70+1 tools
Chip Disc Filtration Conveyor
Programmable Coolant Nozzle
32 GB Expanded Memory
95-Gallon (360 liter) Coolant Tank with 1 hp
(0.75 kW) pump
ADDITIONAL ADD ONS:
StarMetal Fluids Skimray
Swarf Unlimited XL-Sump Filter Screen
Swarf Unlimited Sump Filler Panel
Haas Robotic Pallet Loading System with UMC-500SS
OPTIONS:
Demo 2025
25 kg Capacity Robot
2-Meter Light Curtain Kit; Includes Two 2-Meter Light Curtains and 2 Mirrors
Zero Point Pallet Kit; Includes 3 Zero Point Pallets
Haas ST-20Y Y-Axis CNC Lathe
OPTIONS
Demo 2025
4,000-rpm Spindle, 20 hp, A2-6 spindle nose, 2.5” bar capacity
Automatic Tool Presetter
Belt-Type Chip Conveyor
Auto Jet Blast for the Main Spindle
Programmable Hydraulic Tailstock
55-Gallon (208 liter) Coolant Tank with 1 hp (0.75 kW) pump
ADDITIONAL ADD ONS:
StarMetal Fluids Skimray
Swarf Unlimited Standard Sump Filter Screen

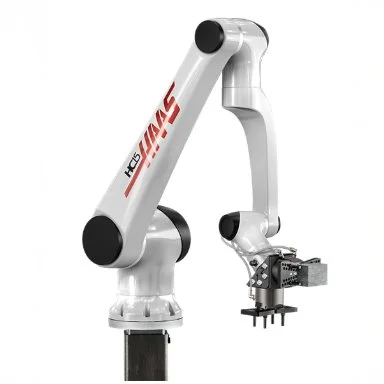

Haas Cobot
Package-15KG with ST-20Y
OPTIONS:
Demo 2025
Duel Pneumatic Grippers
Protective Barriers
Parts Table
Part Flip Station

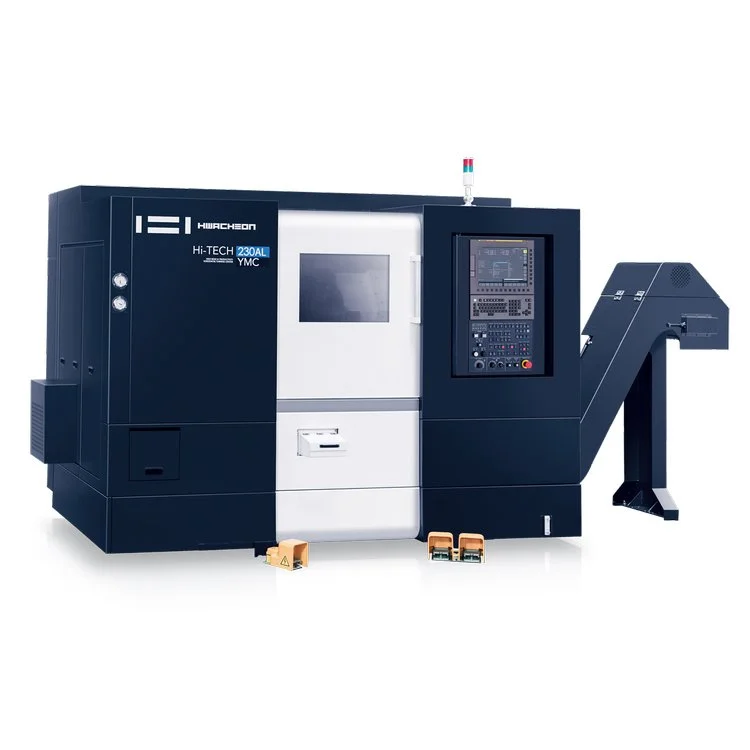

Hwacheon Hi-TECH 230BL YSMC Long Bed Lathe
OPTIONS:
Demo 2025
With Fanuc 0i-TF PLUS Control and with Standard Accessories
Main, Type of Spindle Nose, A2-8
Main, Max Spindle Speed, 3,500-rpm
Sub, Type of Spindle Nose, A2-5
Sub, Max Spindle Speed, 5,000-rpm
BMT65 Turnmill (12 Station turret with Turnmill)
24 Positions (12 Station turret with Turnmill)
Bar Feeder Interface
High Pressure Pump, 6 Bar
Hwacheon Side Chip Conveyor
Parts Catcher
Tool Presetter
Tank Capacity: 140 ℓ (36.98 gal)
ADDITIONAL ADD ONS:
StarMetal Fluids Skimray

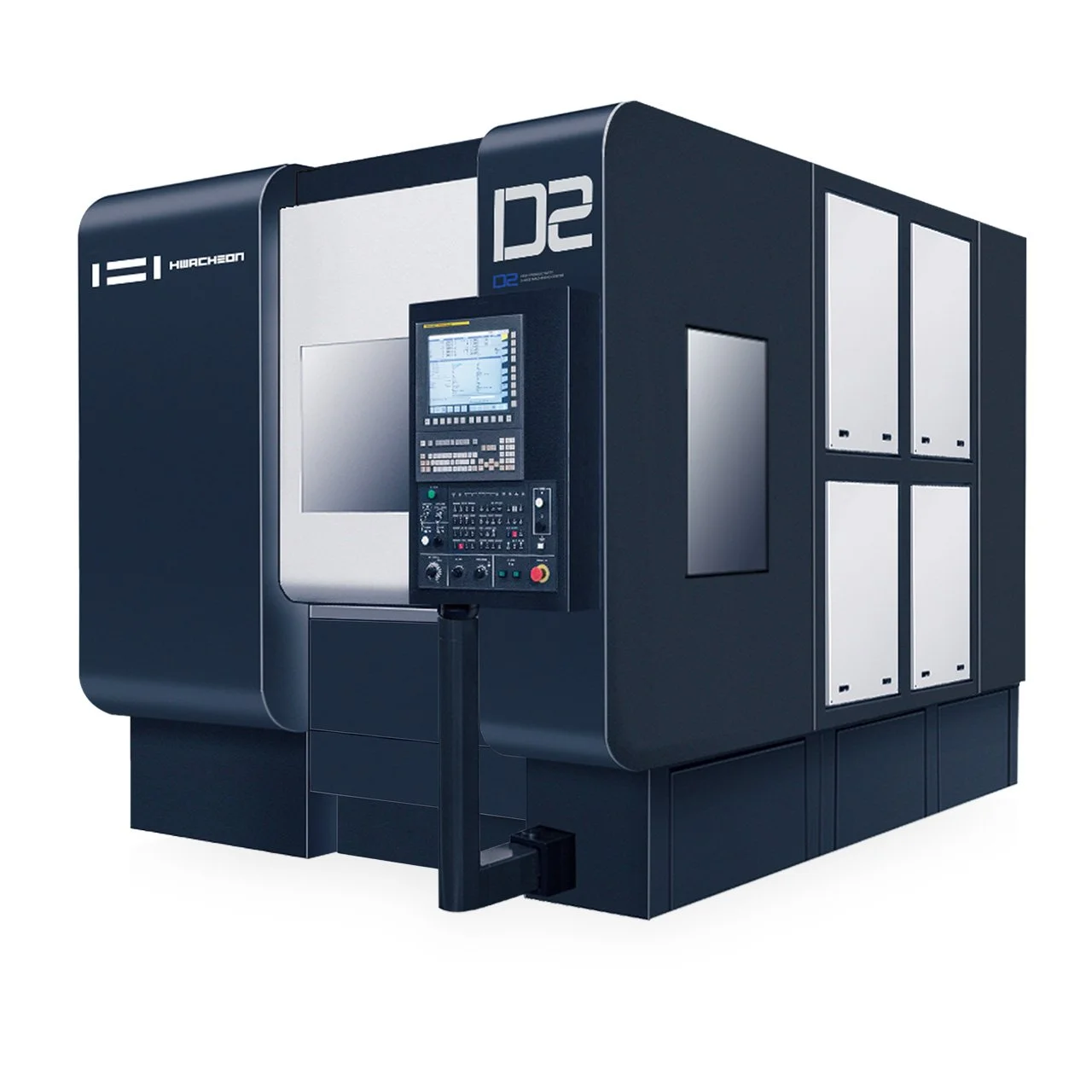

Hwacheon D2-5AX Vertical Machining Center
OPTIONS:
Demo 2021
With Fanuc 0i-MF PLUS Control and with Standard Accessories
Table Size, mm (inch) Ø600 (23.62)
Max Spindle Speed, 12,000-rpm
Tool Storage Capacity, 60
Table Hydraulic Clamping System
AWC Preparation (Rotary Joint Set 4 Port and Clamp Unit)
Chip Conveyor - Hinged Belt Type - Side
Spindle Chiller, Oil Cooler Type
Tank Capacity: 250 ℓ (66.04 gal)
ADDITIONAL ADD ONS:
StarMetal Fluids Skimray
Renishaw Probe Kit
Jergens Workholding Solutions

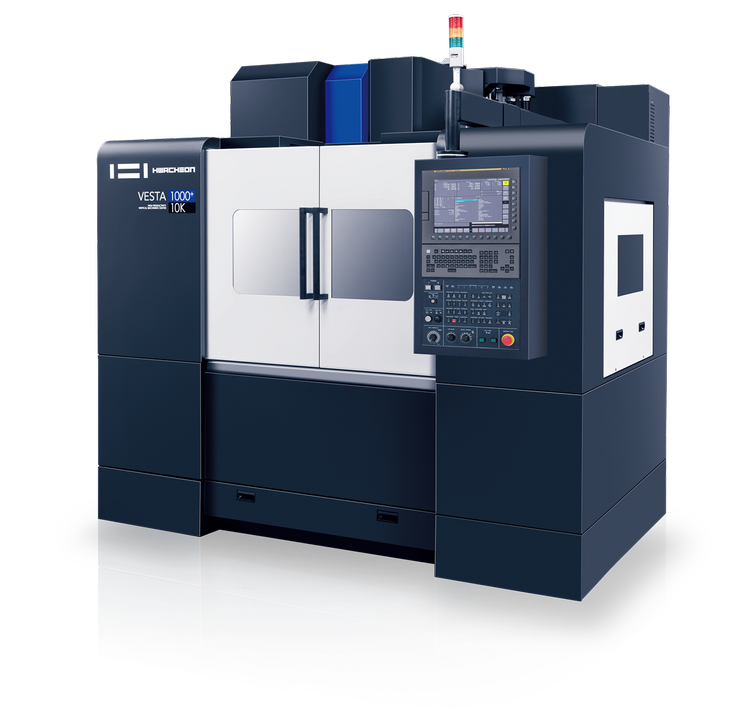

Hwacheon VESTA-100+ Vertical Machining Center
OPTIONS:
Demo 2022
With Fanuc 0i-MF PLUS Control and with Standard Accessories
Table Size, mm (inch) 1,100 x 502 (43.31 x 19.76)
Max Spindle Speed, 12,000-rpm
Tool Storage Capacity, 30
Chip Conveyor - Lift Up Type - Back
Head Coolant Pump (0.05 MPa, 0.4 kW)
Manual Pulse Generator (1ea.)
Spindle Cooler (Jacket Cooling), Oil Cooler Type
Tank Capacity: 250 ℓ (66.04 gal)
ADDITIONAL ADD ONS:
StarMetal Fluids Skimray
Renishaw Probe Kit
Eurotech Rapido BMX 45Y2 Universal Turn/Mill Center
OPTIONS:
Demo 2023
Mitsubishi M830 VS Control
15” Display Multi-Touch Screen
Maximum bar diameter 1.77"
6,000-rpm Main and Sub-Spindle Speed
Pneumatic Ejector (100mm) with Coolant Through
12 Station Upper & Lower Turret (24-live tooling) Y-Axis 2.36” Stroke
Main and Sub-Spindle C-axis - Includes Disc Brake
Parts Catcher for Finished Parts & Parts Conveyor
Bar-Feeder Interface
Swarf Conveyor with two Coolant Pumps (7 Bar) & one Pump 3.5 Bar - Includes Filters
Removable Double Head Tool Probing System
Tool Load Monitoring System
Polygon Option on both Lower & Upper Turret
Standard Tooling Package in METRIC Style

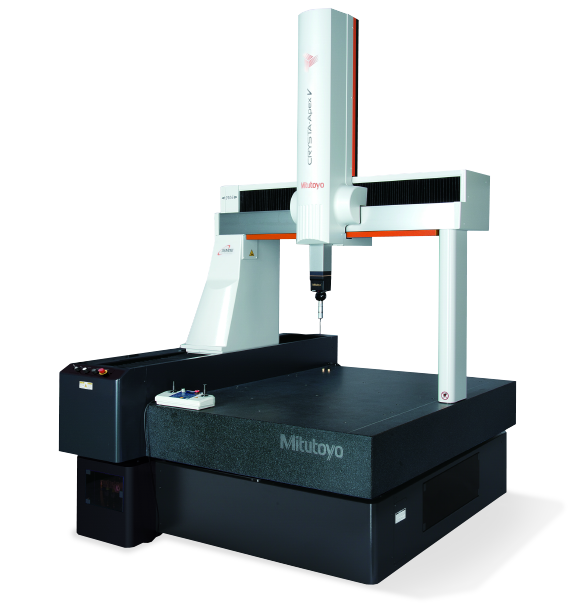

Mitutoyo Crysta-Apex V9106 CMM
OPTIONS:
Demo 2023
JSBOX-M2 Configuration (JR24) Length: 4.5m
Air Dryer, SMC up to 1600mm X-axis CMM
Standard Power Conditioner, 6 AMP
Mobile Ergonomic Stand-Up Desk, 40" Adjustable
Master Ball Dia 20mm (Ceramic/STD)
AC Cordset-UL CSA (Large)
PH10MQ+SP25M Probe/Connection Kit
PH10MQ PLUS Probe Head Kit
SP25M Scanning Probe Kit #1
M3 Carbon Fiber Styles Kit #1
FCR25 Flexible Change Rack (3 port)
MRS Kit-2 (600mm)
MCOSMOS-1 CNC CMM + MiCAT Planner On-Line
DELL T5820 - WIN10, 64-BIT, 64GB RAM
Monitor, DELL 24" Touch Screen - P2418HT
Eco-Fix Kit S
Masterball Adapter (M6/M8)
M3 Starter Styli Kit
Haas TR310 Dual-Axis Trunnion Rotary Table
OPTIONS:
Demo 2022
Scale feedback on A axis
310 mm (12.2”) Platter Diameter
•±120° tilt A axis, 360° rotation, B axis
Sigma 7 Servomotor Drive, for use on NGC Machines
Simple Bolt-On Mounting
500 mm Platter
Brushless Servomotors
Rotary Table Booster
Haas HRT160-2 (6.3") Dual-Platter Rotary Table
OPTIONS:
Demo 2020
160 mm (6.3”) Platter Diameter
Sigma 5 Servomotor Drive, for use on 2011 or Newer Haas Mills
Requires a Haas Mill with 4th‐Axis Drive and Software Version 18.00 or Later for Full 4th-Axis Operation
Contact our office and ask for Business Management in order to schedule a live machine demonstration! 480.968.5335
